AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain

AIR-AP3802E-E-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802E-E-K9 is designed for Indoor, challenging environments, with external antennas. Besides, it provides E regulatory domain.

Quick Specs

Table 1 shows the quick specs of AIR-AP3802E-E-K9.

Product Details

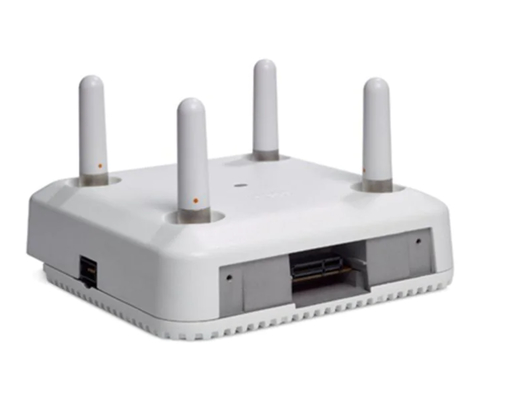

Figure 1 shows the appearance of the AIR-AP3802E.

· There are four antenna connectors and one LED indicator on the face of AIR-AP3802E.

Figure 2 shows ports and connections on the head of the AP.

Note:

Figure 3 shows the external connector ports of the AP.

Note:

Smart Antenna Connector: The 3800 series Access Points now support the capability of dual 5–GHz operation. When in this mode, a smart antenna connector must be used on the external antenna models, as the additional 5–GHz radio cannot use the same top antennas on the access point that are being used by the primary 5–GHz radio.

Side Mount Modular Slot: The AP 3800 has modularity support. This module design allows for installation onto the side of the access point. This allows for larger antenna arrays and does not constrict the development of Cisco and potentially third party modules as they are no longer limited by the physical size of the access point. Additionally, filtering is installed on the AP 3800 for cellular and other radio coexistence.

Supported External Antennas

Table 2 shows the supported external antennas of the AP.

Compare to Similar Items

Table 3 shows the comparison between two AP.
