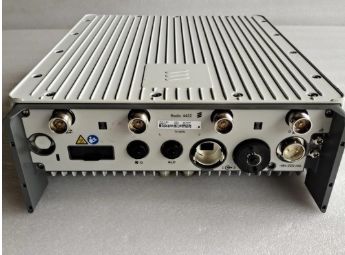

Ericsson Radio 2219 B1 A High-performance Outdoor Macro Radio Unit For Cellular Base Stations Supporting Multiple Standards Like GSM WCDMA And LTE

Overview

The Ericsson Radio 2219 B1 is a high-performance outdoor macro radio unit for cellular base stations, supporting multiple standards like GSM, WCDMA, and LTE. Key specifications include a maximum occupied bandwidth of 60 MHz, an output power of up to 2x60W for this specific model, an operating temperature range of -40℃ to +55℃ and IP65 environmental protection. It features two transmitter/receiver (2T/2R) branches, supports multiple network standards, and connects to the baseband unit via fiber optic cable.

Technical specifications

• Product: Ericsson Radio 2219 B1
• Type: Outdoor macro radio unit (RRU)
• Supported Standards: GSM, WCDMA, LTE
• Band: B1 (2100 MHz)
• Output Power: Up to 2x60W (per port)
• Max Occupied Bandwidth: 60 MHz
• Output Power (per port): 47.8 dBm
• CPRI: 2 x 2.5/4.9/9.8 Gbps
• Antenna Ports: 2 x 4.3-10 connectors

Environmental and mechanical

• Environmental Protection: IP65 encapsulated
• Operating Temperature: -40℃ to +55℃
• Weight: Approx. 18 kg
• Dimensions: 154 mm x 343 mm x 466 mm
• Mounting Options: Pole, wall, or rail mounting

Power and connectivity

• Power Supply: -48 VDC (2-wire)
• Backhaul: Fiber optic connection to the baseband unit
• External Antenna Line Device: Supports RET 2.0 and 12 dB gain TMA via DIN 8 connector
• External Alarms: 2 using DIN 14 connector
•
