Ürün ayrıntıları:
|
| Modeli: | SM-X-24FXS/4FXO | FXS Bağlantı Noktası Sayısı: | 24 |
|---|---|---|---|
| FXO Bağlantı Noktası Sayısı: | 4 | Servis Modülü Türü: | Tek geniş servis modülü |
| Ses Codec'leri: | G.711, G.729 | Boyutlar: | 8,5x7,28x1,58 inç |
| Durum: | 1 yıllık garanti ile yepyeni | Ödeme: | TT / Paypay / Alibaba |
| Sevkiyat: | DHL/FEDEX/UPS |

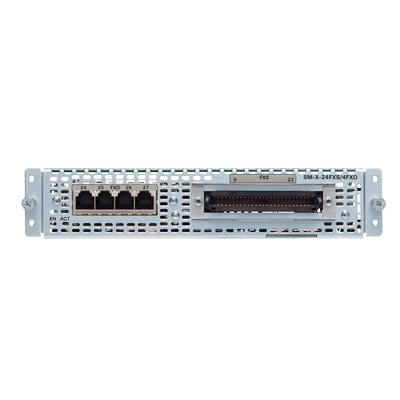

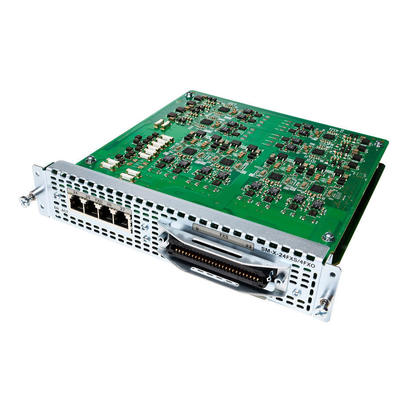

The Cisco SM-X-24FXS/4FXO is a versatile and powerful service module designed for use in a variety of networking environments. With 24 FXS ports and 4 FXO ports, this single-wide service module delivers exceptional performance and scalability for voice communication systems, making it an ideal solution for both small to medium-sized businesses and large enterprises.
![]()
![]()
| Accessory | Model |
| C 4000 Series Chassis | Cisco ISR 4331/K9 |
| Network Interface Card | NIM-4G-LTE-A |
| Power Supply | PWR-4330-AC |
| Model | Key Differences |
| Cisco SM-NM-8FXS | 24 FXS ports, 4 FXO ports |
| Cisco SM-X-ES3-24-P | 24 Ethernet ports, no FXS/FXO capability |
| Cisco NME-VMSS-200 | Dedicated VM services, no analog voice capability |
SM-X-24FXS/4FXO Specifications |
|
| Brand | Cisco |
| Model | SM-X-24FXS/4FXO |
| Type | Service Module |
| Ports | 24 FXS, 4 FXO |
| Form Factor | Single-Wide |
| Compatibility | Cisco ISR 4000 Series |
| Signal Type | FXS Foreign Exchange Station, FXO Foreign Exchange Office |
| Data Rates | Up to 1 Mbps (per port) |
| Connectors | RJ-11 |
| Power Consumption | 15W (typical) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Ring Cadence | Configurable |
| Channel Density | Up to 28 ports |
| Compliance | RoHS, CE, FCC |
| Dimensions (W x D x H) | 8.5 in x 7.25 in x 1.5 in |
| MTBF | 300,000 hours |
| Voice Protocol Support | SIP, H.323 |
| Codec Support | G.711, G.729 |
| Firmware Upgradeable | Yes |
![]()
