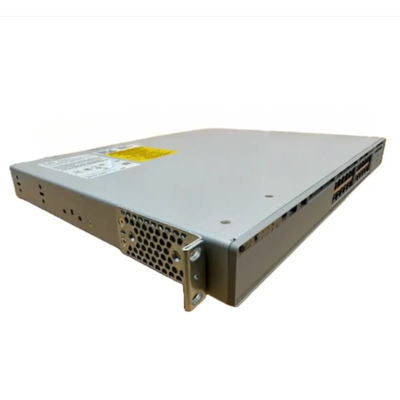

Cisco C9200-24T-E Catalyst 9200 24 Port Gigabit Switch Network Essentials

The Cisco C9200-24T-E is a foundational enterprise access switch designed to deliver secure, scalable, and simplified connectivity for modern branch and campus networks. As a modular member of the Catalyst 9200 family, it features 24 Gigabit Ethernet data-only ports and operates on the powerful Cisco IOS XE operating system. By integrating Cisco's intent-based networking capabilities into a cost-effective 1RU form factor, this switch provides organizations with essential Layer 2 and basic Layer 3 features via the Network Essentials license. Its modular design allows for field-replaceable components, including power supplies and fans, ensuring high availability and long-term investment protection for expanding business infrastructures.

The C9200-24T-E is technically defined as a modular, fixed-configuration enterprise switch that extends the innovations of the Catalyst 9000 series to broader sets of deployments. It is equipped with the Cisco UADP 2.0 Mini ASIC, which offers optimized scale and a better cost structure through a programmable pipeline.

Key physical and performance attributes include:

• Port Density: 24 × 10/100/1000 Gigabit Ethernet data-only copper ports.

• Switching Capacity: Provides up to 128 Gbps of switching bandwidth with a forwarding rate of 190.4 Mpps.

• Modular Architecture: Supports optional network modules for 1G, 10G, or 25G SFP+ uplinks, allowing for flexible capacity expansion as network demands grow.

• Resiliency Features: Includes field-replaceable redundant power supplies and fans (FRU), which are critical for maintaining uptime in mission-critical environments.

• Stacking Support: Implements Cisco StackWise-160 technology, enabling up to 8 switches to be managed as a single logical unit with 160 Gbps of stacking bandwidth.

Organizations choose the C9200-24T-E when they require a balance of enterprise-grade performance and hardware flexibility without the need for Power over Ethernet (PoE).

• Modular Uplink Flexibility: Unlike "L" series fixed-configuration switches, the C9200-24T-E allows you to swap uplink modules (e.g., from 1G to 10G) without replacing the entire switch chassis.

• Superior Availability: The ability to replace fans and power supplies in the field (FRU) ensures that hardware failures do not result in prolonged network outages.

• Enhanced Security: The switch integrates AES-128 MACsec encryption, policy-based segmentation, and 802.1X authentication, providing a robust defense against evolving network threats.

• Operational Efficiency: Support for Cisco DNA Center and Plug-and-Play (PnP) enables centralized automation and simplified deployment, significantly reducing manual configuration time.

In a typical branch office or campus edge environment, the C9200-24T-E serves as the primary access layer for data-heavy end devices such as workstations, printers, and servers.

• Campus Edge Scaling: By utilizing StackWise-160, IT managers can stack up to eight C9200-24T-E units to increase port density in a single wiring closet while maintaining a single management IP.

• Layer 3 Migration: With the Network Essentials license, the switch supports routed access features including OSPF, EIGRP, and static routing, facilitating more complex network designs beyond simple Layer 2 switching.

• Monitoring and Visibility: Full Flexible NetFlow (FNF) capabilities allow administrators to monitor traffic patterns at a granular level, helping to identify bottlenecks or suspicious activities within the LAN.

Q1: What is the primary difference between C9200-24T-E and C9200L-24T-4G-E?

The C9200-24T-E is modular, featuring replaceable fans and swappable uplink modules. The C9200L variant is fixed, meaning its fans and uplinks cannot be replaced or upgraded. Additionally, the C9200 supports 160 Gbps of stacking bandwidth compared to 80 Gbps for the C9200L.

Q2: Does the C9200-24T-E support Power over Ethernet (PoE)?

No, the C9200-24T-E is a data-only model. For PoE+ requirements (up to 30W per port), organizations should consider the C9200-24P-E variant.

Q3: What software features are included in the Network Essentials license?

The Network Essentials license provides core Layer 2 capabilities, static routing, OSPF, basic security features (ACLs, DHCP snooping), and basic Cisco DNA Center automation.

Q4: Can I stack a C9200 switch with a C9200L switch?

No, C9200 and C9200L switches use different stacking architectures and cannot be mixed in the same stack. They must be stacked with their own respective series members.

Q5: What uplink modules are compatible with this switch?

The C9200-24T-E supports optional modules including 4 x 1G SFP, 4 x 10G SFP+, and 2 x 25G SFP28 options, ensuring flexibility for future bandwidth upgrades.

Q6: What kind of warranty and after-sales support do you provide?

We offer professional technical support and various warranty options. Our team can assist with compatibility verification, modular uplink selection, and post-sale configuration to ensure your Cisco Catalyst hardware operates at peak efficiency.

The Cisco Catalyst C9200-24T-E remains a premier choice for enterprises seeking a resilient, modular access switch that does not compromise on performance or security. Its combination of StackWise-160 technology and field-replaceable units provides a future-proof foundation for any growing network infrastructure.
