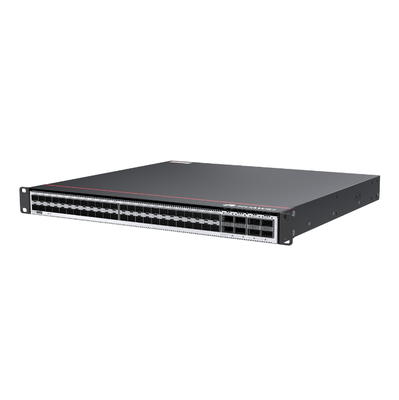

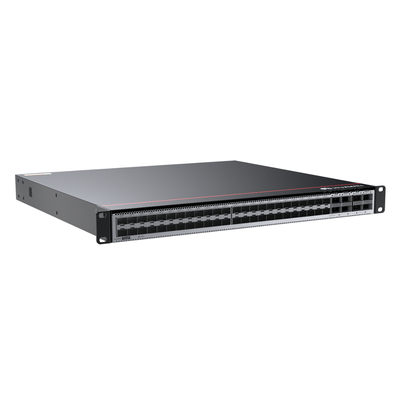

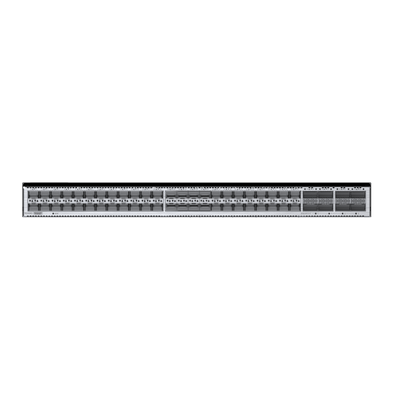

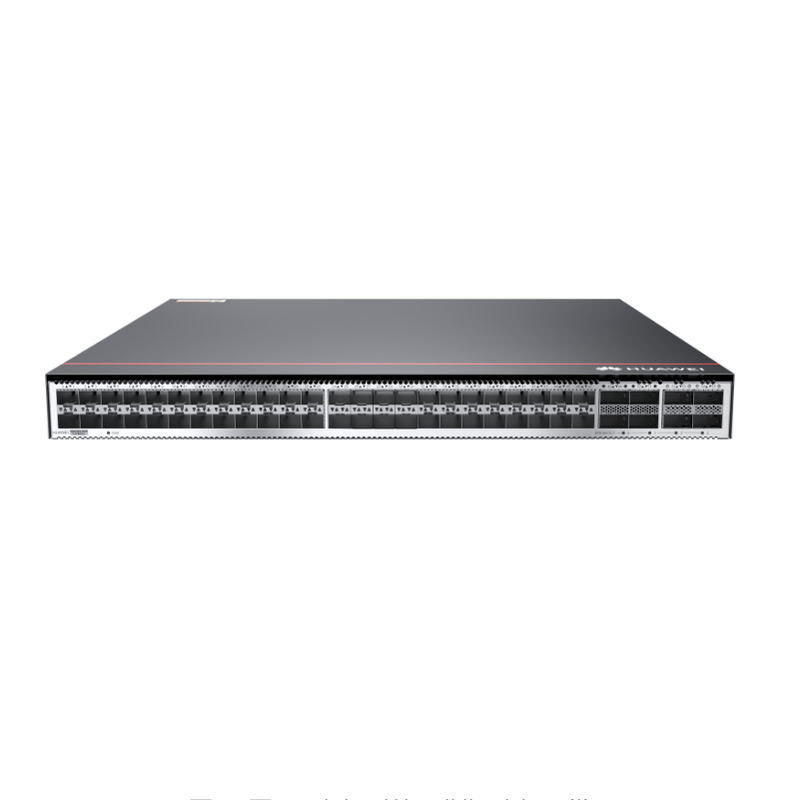

Huawei NetEngine 8000 F1A Series Router (CR8PF1ABASC5) Overview
The Huawei NetEngine 8000 F1A (Part Number: CR8PF1ABASC5) is a next-generation, high-density, intelligent routing platform purpose-built for the cloud era. Engineered specifically for telecom operators, cloud service providers (CSPs), and large-scale enterprise backbones, it provides an ultra-broadband data pipe capable of multi-service aggregation.
By natively supporting next-generation routing protocols such as Segment Routing (SR) and Segment Routing over IPv6 (SRv6), the CR8PF1ABASC5 eliminates complex protocol overlay, simplifies network architectures, and ensures cross-domain deterministic latency. With built-in full-lifecycle automation and proactive Operations & Maintenance (O&M) capabilities, this platform drastically reduces OpEx while maximizing service agility.
Key Technical Highlights & Business Value
- Next-Gen SRv6 Protocol Stack: Supports native SRv6 and SR-MPLS, enabling end-to-end path programming, automated traffic engineering, and network slicing for 5G and cloud services.
- Ultra-Broadband Architecture: Massive switching capacity per slot, providing high-density 100GE/40GE/10GE wire-speed forwarding to accommodate explosive cloud traffic growth.
- Full-Lifecycle Automation: Fully integrated with Huawei NCE (Network Cloud Engine), allowing one-click service provisioning, automatic topology discovery, and real-time path optimization.
- Proactive O&M with Telemetry: Replaces traditional reactive SNMP polling with high-precision hardware Telemetry and In-situ Flow Information Telemetry (iFIT) for millisecond-level traffic monitoring and silent fault detection.
Technical Specifications
⚠️ Technical Correction Note: The CR8PF1ABASC5 is a carrier-grade fixed/modular backbone routing platform. It does not contain residential consumer features such as 2.4G/5G Wi-Fi, WPS, or home modem functions.
| Parameter / Feature |
Specification Details |
| Brand & Series |
Huawei NetEngine 8000 Series |
| Model / Part Number |
NetEngine 8000 F1A (CR8PF1ABASC5) |
| Target Segment |
Telecom Metro Edge, Enterprise WAN Core, Data Center Gateway |
| Forwarding Framework |
Hardware-driven Line-Rate Forwarding (IPv4 / IPv6 Dual-Stack) |
| Advanced Protocols |
SRv6, SR-MPLS, BGP-EVPN, OSPFv3, IS-ISv6, MPLS TE |
| O&M Telemetry |
Hardware Telemetry, iFIT (In-situ Flow Information Telemetry), NetStream |
| Automation Architecture |
Huawei iMaster NCE Integrated Control Plane |
| Reliability Support |
BFD (Bidirectional Forwarding Detection), FRR (Fast Reroute), NSF, NSR |
| Certifications |
CE, FCC, RoHS, REACH, ISO 9001, ISO 14001 |
Huawei NetEngine 8000 Portfolio Comparison
Understanding how the NetEngine 8000 F1A (CR8PF1ABASC5) positions within the NetEngine family helps infrastructure architects optimize their procurement:
| Feature / Metric |
NE8000 F1A (CR8PF1ABASC5) |
NE8000 F2A |
NE8000 X3 |
NE8000 M8 |
NE5000E E1 |
| Ultra-Broadband Pipes |
✅ Yes |
✅ Yes |
❌ No |
✅ Yes |
❌ No |
| SR / SRv6 Protocol Native |
✅ Yes |
✅ Yes |
✅ Yes |
❌ No |
❌ No |
| Network Simplification |
✅ Yes |
✅ Yes |
❌ No |
✅ Yes |
❌ No |
| Proactive O&M (Telemetry) |
✅ Yes |
✅ Yes |
❌ No |
❌ No |
❌ No |
| Full-Lifecycle Automation |
✅ Yes |
✅ Yes |
✅ Yes |
✅ Yes |
✅ Yes |
| Form Factor |
Fixed High-Density |
Fixed High-Density |
Modular Core |
Compact Modular |
Massive Backbone |
System Options & Module Matrix
Customize your deployment and ensure system redundancy with these certified optional components:
- CR8PF1ABASC5-MP: NetEngine 8000 F1A Management Plane Module for dual-control plane redundancy and high-availability operations.
- CR8PF1ABASC5-PSU: High-efficiency Power Supply Unit supporting hot-swappable AC/DC carrier-grade redundancy configurations.
- CR8PF1ABASC5-LIC: Advanced Software Licensing Package, unlocking native SRv6 path optimization, network slicing, and large-scale BGP routing tables.
RFQ
> Q1: What is the primary architectural application for the Huawei CR8PF1ABASC5?
A: The CR8PF1ABASC5 (NetEngine 8000 F1A) is predominantly deployed as a high-density aggregation or edge router. Its sweet spot is in Cloud Service Provider (CSP) gateways, Enterprise Data Center Interconnect (DCI), and telecom metro edge networks. It acts as the critical bridge that converts legacy MPLS or IPv4 traffic into unified, programmable SRv6 pipelines for cloud-backbone transit.
> Q2: How does the CR8PF1ABASC5 simplify network construction compared to older platforms?
A: Older routing architectures require an overlay of multiple protocols (such as LDP, RSVP-TE, and BGP) to manage MPLS tunnels and VPN services. The NetEngine 8000 F1A consolidates these layers via SRv6 (Segment Routing over IPv6). It utilizes standard IPv6 headers to define packet routing paths directly from the source, eliminating tunnel negotiation states and drastically simplifying multi-domain network provisioning.
> Q3: Does this part number include the necessary software licenses for advanced routing?
A: The base part number CR8PF1ABASC5 includes the hardware chassis assembly and core operating system features. For advanced capabilities like hardware-accelerated SRv6 path programming, deep network slicing, or carrier-grade NAT, you will need to append the CR8PF1ABASC5-LIC (Advanced Licensing Package) to your bill of materials (BOM).
> Q4: What after-sales technical support and warranty options are available for global buyers?
A: All core enterprise hardware includes a standard 1-Year Return-to-Factory Hardware Warranty. To guarantee carrier-grade network availability, we provide optional Huawei Hi-Care and Co-Care Service Level Agreements (SLAs). These support add-ons grant your engineering team 24/7/365 access to Remote Technical Assistance Centers (TAC), emergency software patches, and Next Business Day (NBD) or 4-Hour On-Site advanced spare hardware replacement globally.
